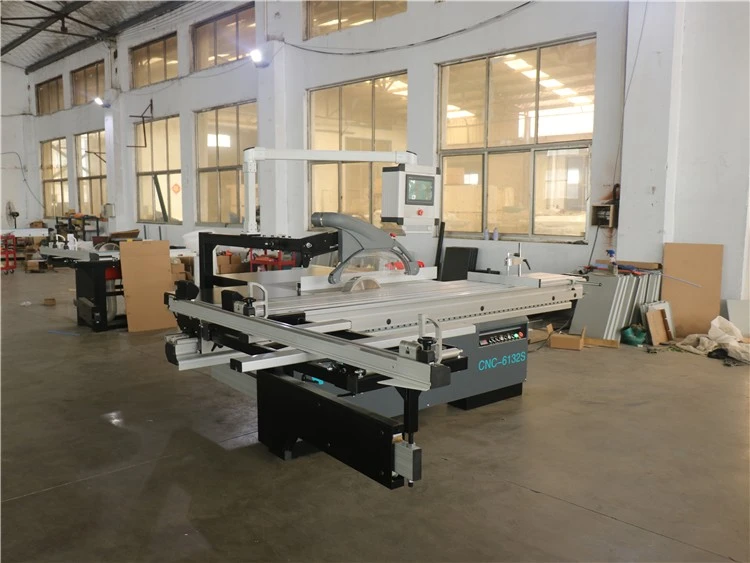

CNC Sliding Table Saw is an automated panel saw designed for precise and efficient cutting of wood panels, MDF, plywood, and other sheet materials, suitable for furniture, cabinetry, and construction applications.
Specification
|
Sliding Table Dimension |
3200*390mm |
|
Cast Iron Table Dimension |
910*620*80mm |
|
length extension table |
905*680*70mm |
|
width cutting extension table |
640*680*70mm |
|
Main Saw Diameter |
300mm |
|
Main Saw Blade Diameter Maximum |
350mm |
|
Main Saw Bore Diameter |
30mm |
|
Max. Cutting Height With Bade at 90 |
80/100mm(φ300/350) |
|
Max. Cutting Height With Bade at 45 |
50/70mm(φ300/350) |
|
Main Motor Power |
5.5KW |
|
Main Blade Speed |
4000/6000RPM |
|
Scorning Saw Blade Diameter |
120mm |
|
Scorning Saw Bore Diameter |
20mm |
|
Scorning Saw Motor Power |
1.1KW |
|
Scorning Blade Speed |
8000RPM |
|
Max. Cutting Width |
1250mm |
|
Max. Cutting Length |
3100mm |
|
Blade Tilting Adjustment |
0-45° |
|
Main Saw Height Adjustment |
Electric |
|
Scorning Saw Height Adjustment |
Electric |
|
Dust Guard Outlet Diameter |
80mm |
|
Dust System Outlet Diameter |
1Dimensions |
|
nsion of Wood Packing Carton |
2300*2200*1300mm(Main Crate ) |
|
3400*450*290mm(Sliding Table) |
|
|
Dimension |
3250*3450*900mm |
|
G. W. |
1000KG |
feature
- Equipped with a digital control panel and emergency stop button, it's easy, safe, and reliable to operate.
- CNC Sliding Table Saw uses an electronic control system to automatically adjust the main saw's height.
- The main saw automatically tilts from 0-45°, supporting angled cutting and enhancing processing flexibility.
- The CNC-controlled slide feed ensures smooth material movement, minimizing workpiece damage.
- The large CNC-controlled guide rail ensures precise and consistent feed positioning, ensuring repeatable machining accuracy.
- High-precision internal linear guides ensure stable operation and long-lasting durability.
- The European-imported dust cover and Freud saw blade ensure efficient chip removal, maintaining a clean working environment.
our service
Pre-sale: Recommend the most suitable products based on customer needs and provide a complete set of solutions.
Sale: Confirm order details with the factory and monitor production progress, addressing any changes in customer requirements promptly.
After-sales: Collect customer feedback and promptly resolve any issues encountered during product use.

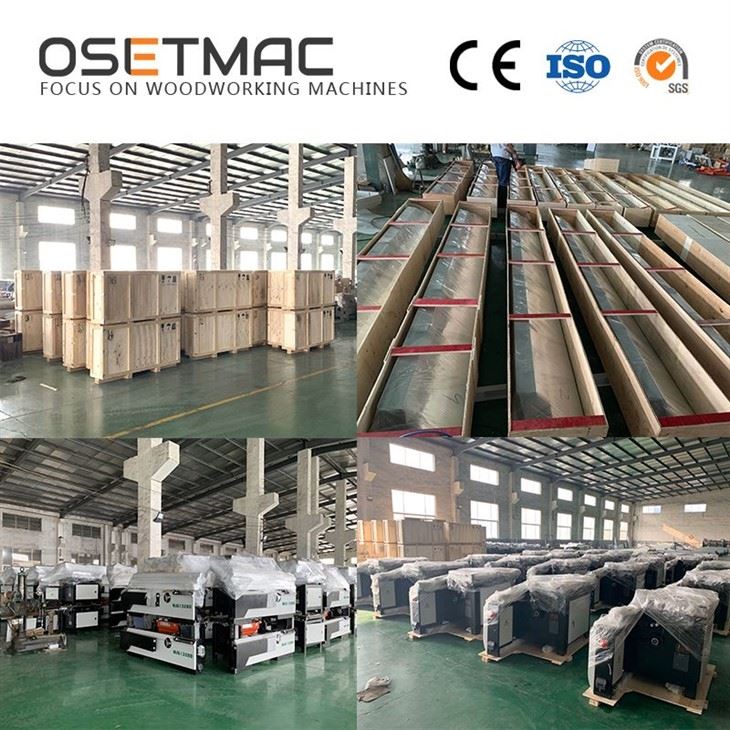

About OSETMAC
OSETMAC has been specializing in woodworking machines for over 8 years, focusing on providing high-quality and reliable solutions for the furniture and woodworking industries. We own a wholly-owned manufacturing facility, Qingdao Three One Three Machinery Company, which is recognized as a professional woodworking machine producer.
Our main products include sliding table saws, brush sanding machines, edge banding machines, wood drilling machines, and CNC routers, all designed to meet the needs of modern woodworking operations. These machines are widely applied in furniture design, decoration, furniture production, and door and cabinet making.
OSETMAC products have been exported to more than 30 countries and regions, covering the Middle East, Southeast Asia, Europe, and South America. We pride ourselves on in-house R&D capabilities, timely production delivery, and prompt customer service. Our manufacturing facilities have obtained ISO9001 certification, and several main products have passed the CE certification, ensuring safety, quality, and compliance with international standards.
certification
Our manufacturing facility is ISO9001 certified, and some of our key products are CE certified.
