Product Introduction

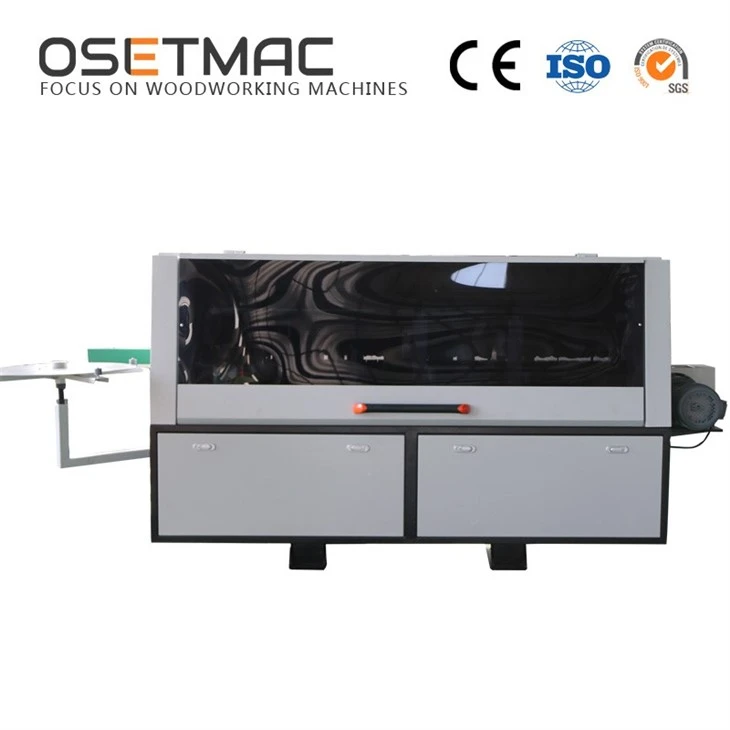

The 45-degree edge banding machine is specially designed for beveling panel edges at a 45-degree angle. It is suitable for custom furniture, cabinet door panels, and high-end wood trim production.
Product Features
Sturdy Construction
The 45-degree edge banding machine utilizes a thickened Q235 carbon steel frame, ensuring strong structural rigidity and long-lasting deformation resistance.
Precision Machining and Positioning

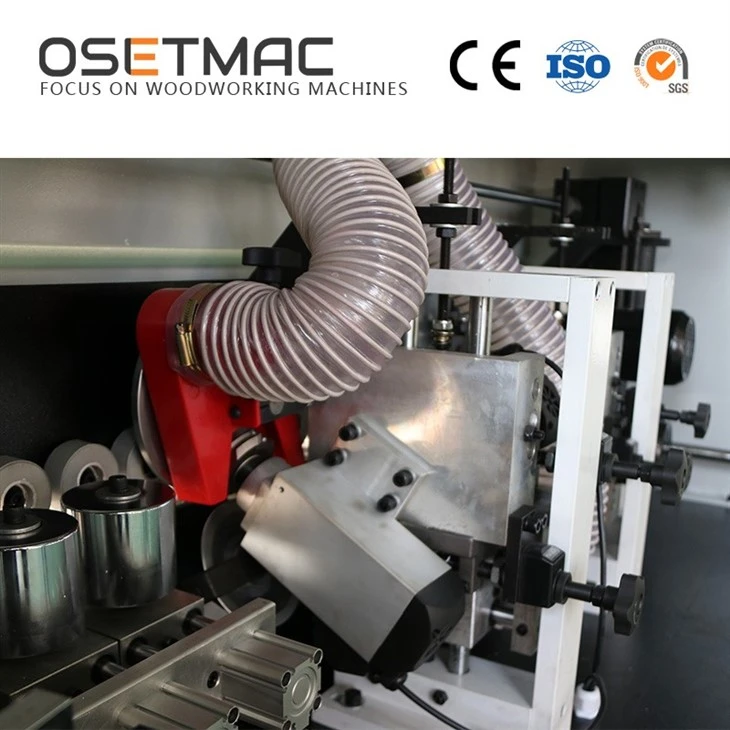

Key components are CNC-machined with a positioning accuracy of ±0.02mm, ensuring straight, seamless cuts during 45-degree edge banding.
Easy-Maintenance Design
The European-style quick-release glue pot allows for replacement and cleaning in just 5 minutes.
Specification
|
Model |
SYS-300 |
|
Panel Thickness |
10-60mm |
|
Edge Band Thickness |
0.3-3mm |
|
Panel Width |
≥60mm |
|
Panel Length |
≥150mm |
|
Feeding Speed |
15m/min |
|
Working Pressure |
0.6Mpa |
|
Voltage |
380V/50HZ/3PH |
|
Gluing Motor |
0.37KW/50HZ/1400RPM |
|

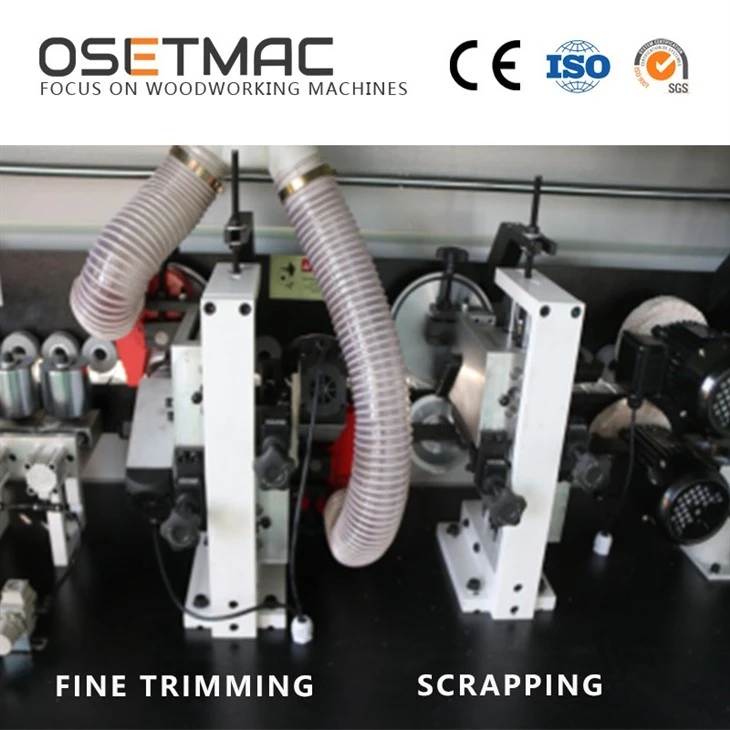

Fine Trimming Motor |
0.55KW * 2/200HZ/12000RPM |
|

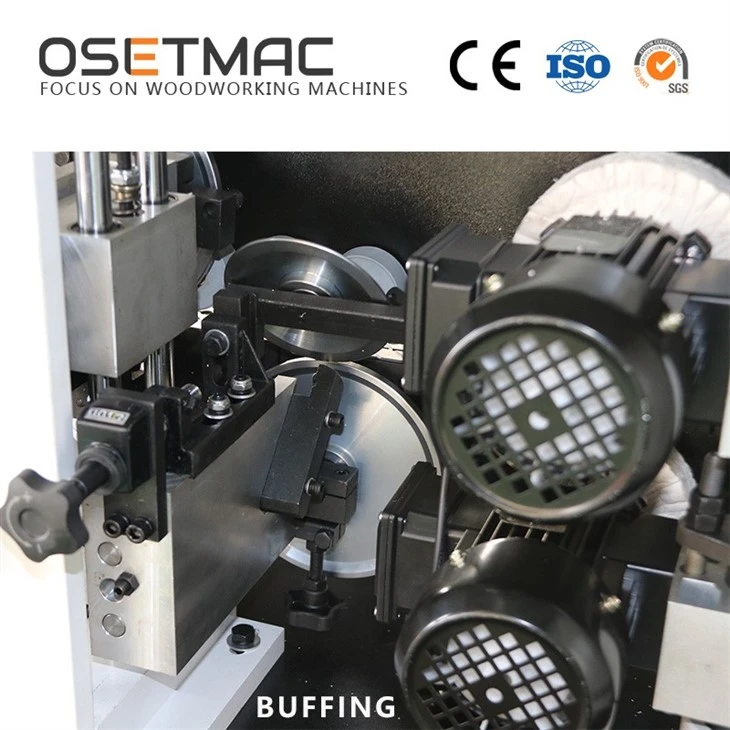

Buffing Motor |
0.37KW * 2/50HZ/1400RPM |
|
Conveyor Motor |
1.5KW |
|
Glue Pot Heating Power |
1.5KW |
|
Assistant Heating Power |
0.3KW |
|
Lighting Power |
0.05KW |
|
Total Power |
5.2KW |
|
Dimension |
2850x700x1350mm |
|
Wooden Case Package |
2900x750x1380mm |
|
Weight |
680KG |
Company Advantages
Rich Experience and Expertise: With over eight years of expertise in woodworking machinery, we have accumulated extensive industry experience and technical expertise.
Independent Manufacturing and R&D Capabilities: We own a wholly-owned manufacturing facility (Qingdao Sanysan Machinery Co., Ltd.), enabling independent R&D and on-time production delivery.
Extensive International Market Reach: Our products are exported to over 30 countries and regions, including the Middle East, Southeast Asia, Europe, and South America, demonstrating strong international competitiveness.
Strict Quality and High-Quality Service: Our factory is ISO9001 certified, and some products are CE certified. We also provide responsive customer service and complete solutions.
Frequently Asked Questions
Q: How does a 45-degree edge banding machine work?
A: A 45-degree edge banding machine uses a motor-driven feed mechanism to align the board and edge banding strip at a 45-degree angle. After heating and melting the adhesive layer, the edges are pressed together to seal.
Q: What materials are suitable for a 45-degree edge banding machine?
A: The 45-degree edge banding machine is suitable for boards such as solid wood particle board, density fiberboard, and multi-layer board. It can also band edge banding strips such as PVC, ABS, and solid wood veneer.
Q: How do I adjust the 45-degree angle accuracy of the edge banding machine?
A: The operator rotates the angle adjustment knob on the machine and uses a laser positioner to calibrate the angle between the blade and the board to ensure the required 45-degree accuracy.
Q: What parts of the edge banding machine should be carefully cleaned during daily cleaning?
A: During daily cleaning of the edge banding machine, focus on wiping the feed roller, pressure wheel, and glue pot surfaces, and remove wood chips from the gap between the blades to prevent residue from affecting the edge banding quality.
Q: What should I do before using a new machine for the first time after installation?
A: After installing a new edge banding machine, check that all connections are secure, add lubricating oil to the transmission components, and test-run the machine empty for three minutes to confirm that there are no abnormalities before adding material.
