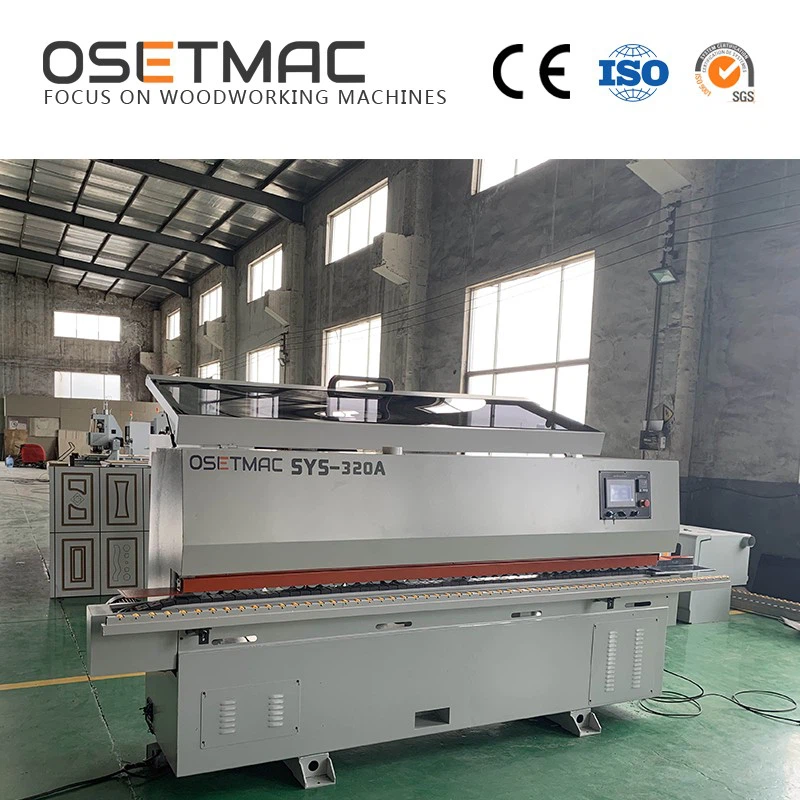

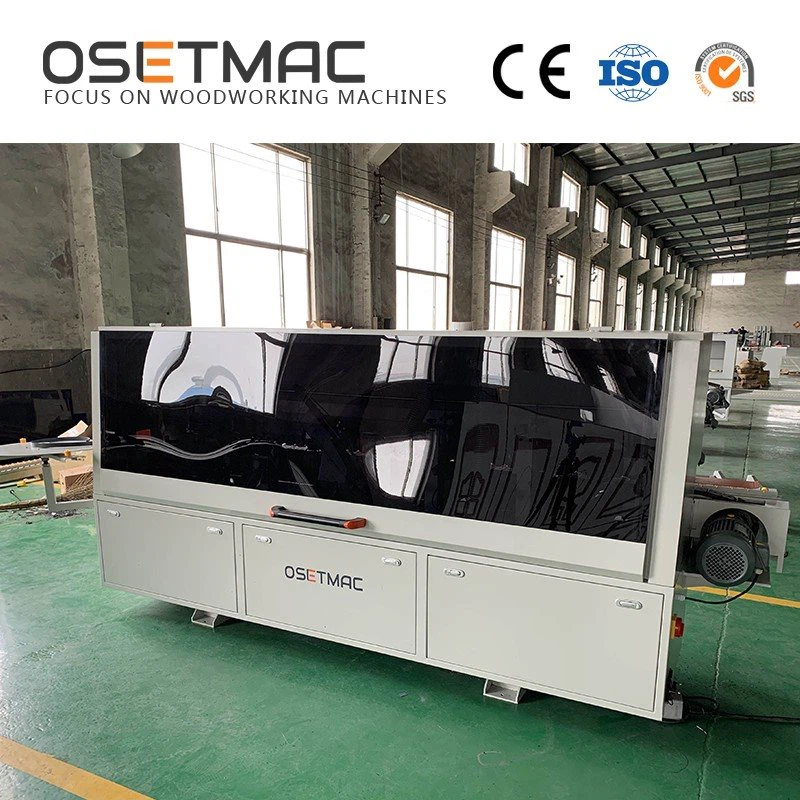

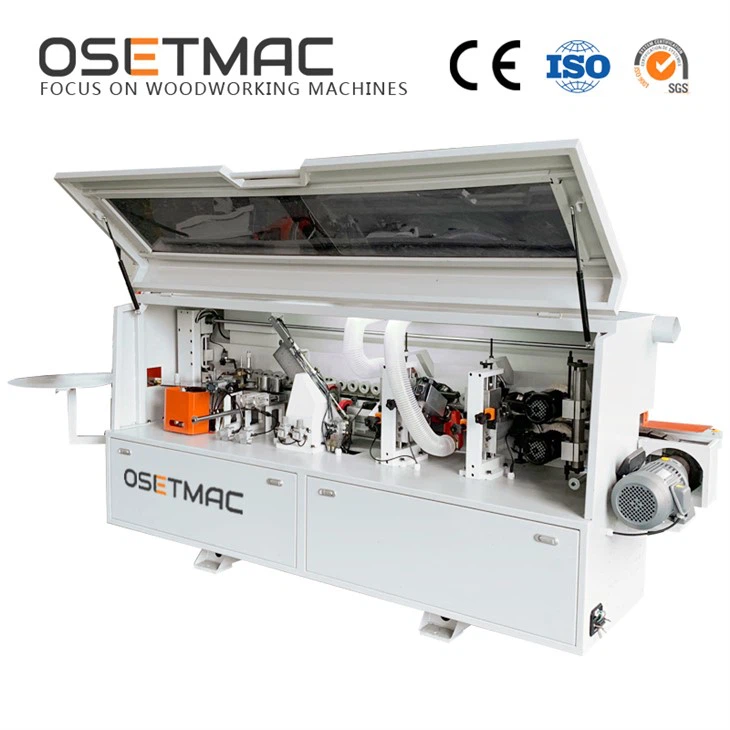

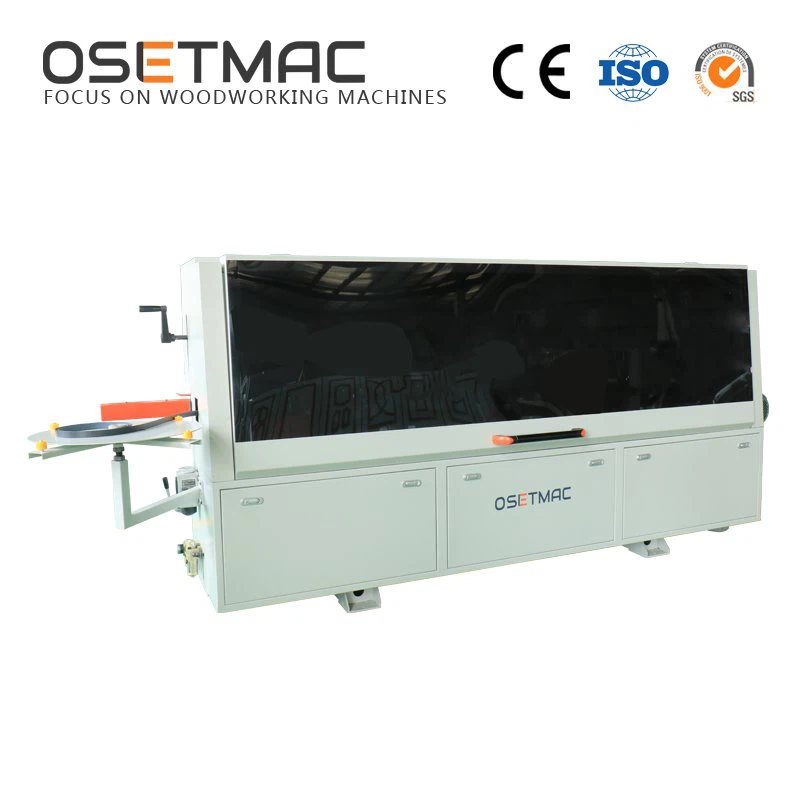

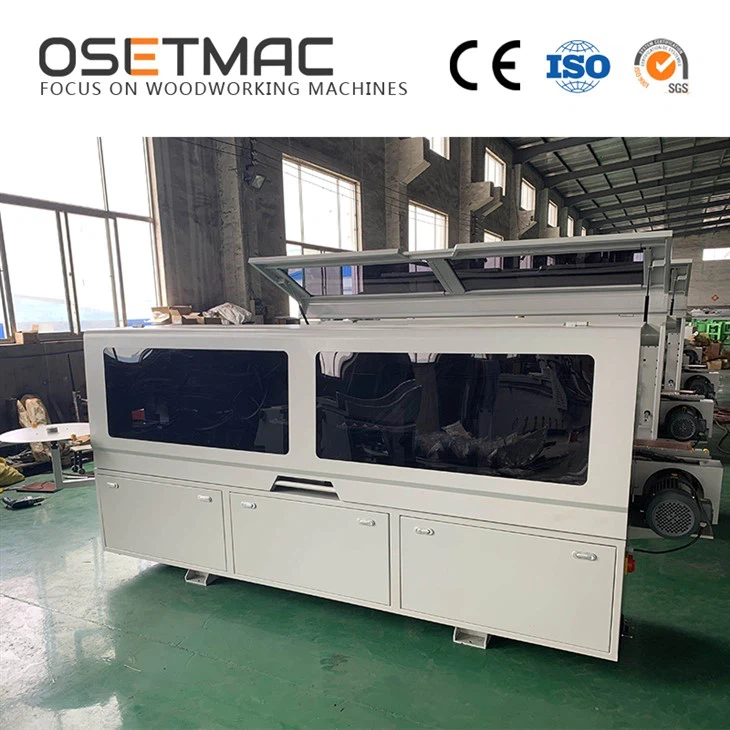

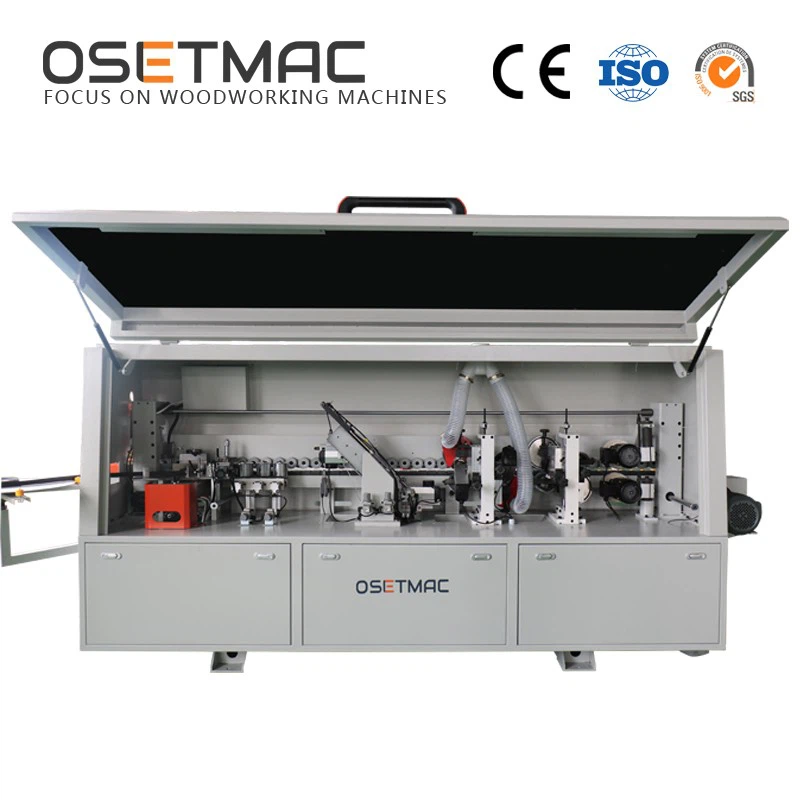

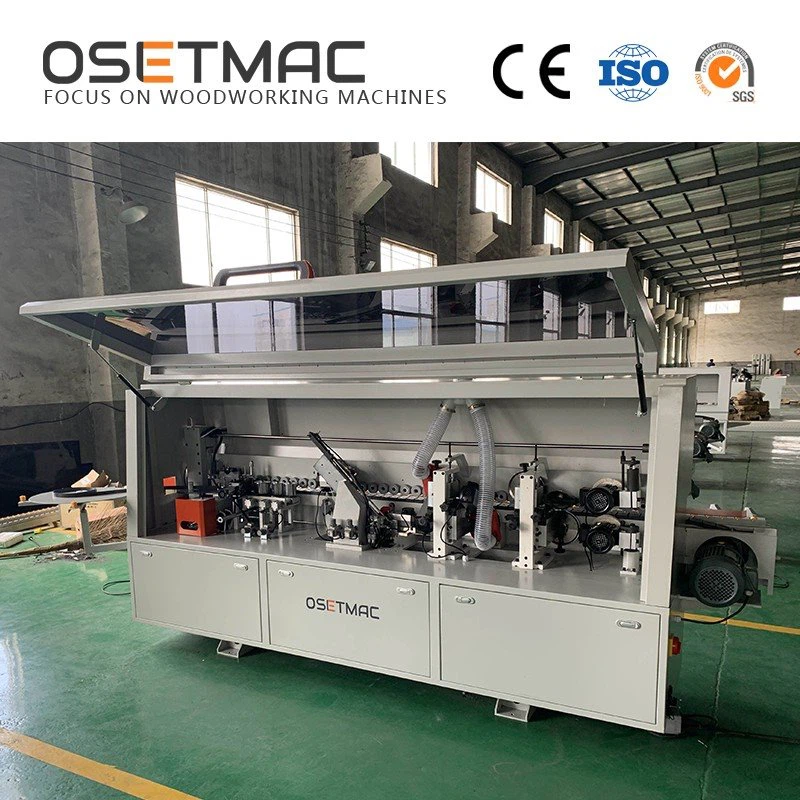

The Mini Automatic Edge Bander is a compact automatic machine designed to efficiently apply edge banding to straight or slightly curved panels, suitable for furniture, cabinets, doors, and decorative boards.
|

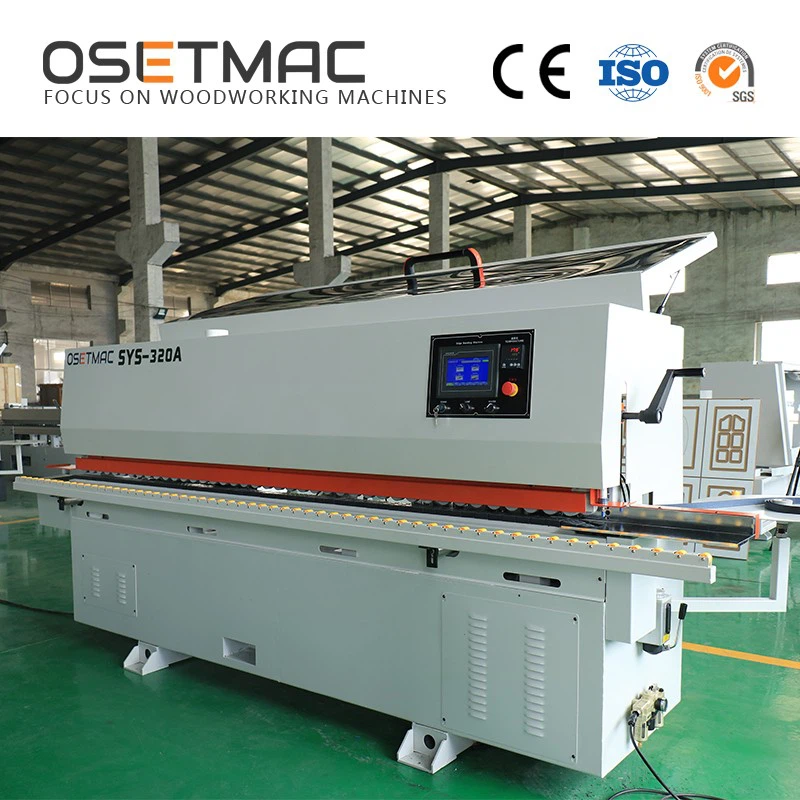

Model |
SYS-320A |
|
Panel Thickness |
10-60mm |
|
Edge Band Thickness |
0.3-3mm |
|
Panel Width |
≥60mm |
|
Panel Length |
≥150mm |
|
Feeding Speed |
15m/min |
|
Working Pressure |
0.6Mpa |
|
Voltage |
380V/50HZ/3PH |
|
Gluing Motor |
0.37KW/50HZ/1400RPM |
|
End Cutting Motor |
0.37KW * 2/200HZ/12000RPM |
|
Fine Trimming Motor |
0.55KW * 2/200HZ/12000RPM |
|
Buffing Motor |
0.37KW * 2/50HZ/1400RPM |
|
Conveyor Motor |
1.5KW |
|
Glue Pot Heating Power |
1.5KW |
|
Assistant Heating Power |
0.3KW |
|
Lighting Power |
0.05KW |
|
Total Power |
6.3KW |
|
Dimension |
3650x770x1600mm |
|
Wooden Case Package |
3750x870x1700mm |
Feature

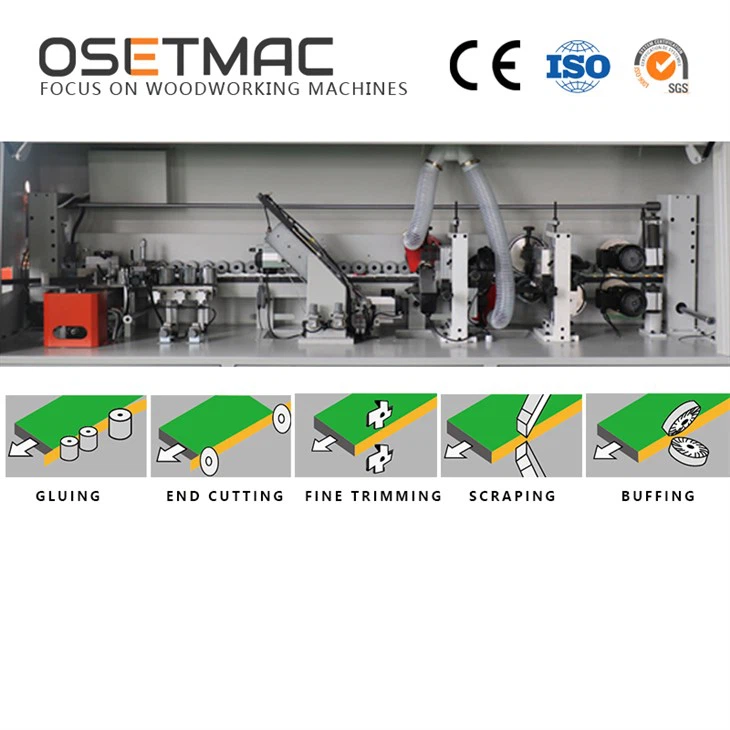

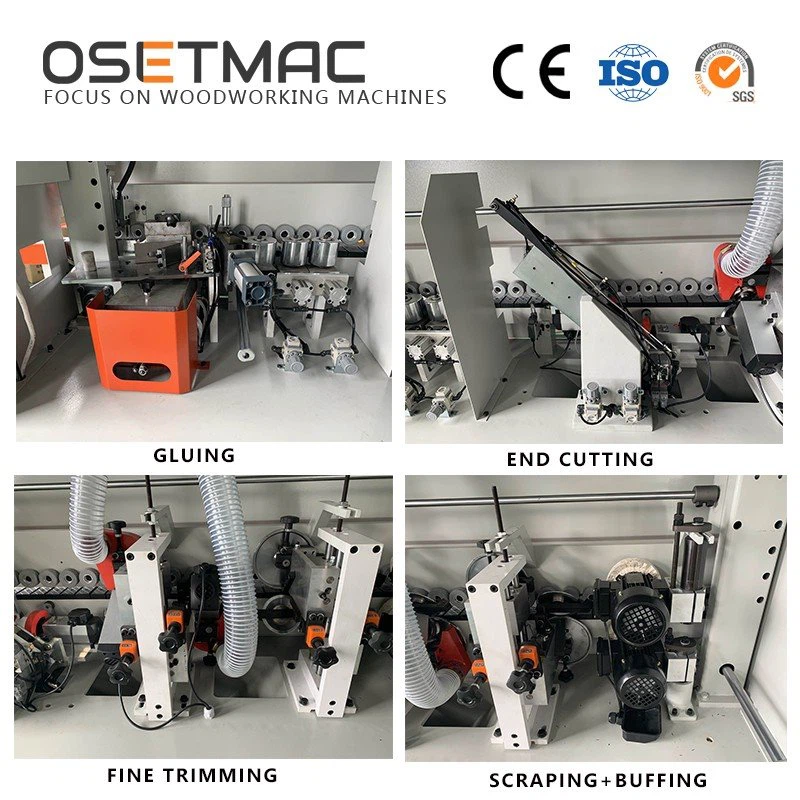

- Quick-melt adhesive system: Ensures uniform glue penetration, improving edge banding adhesion and processing quality.

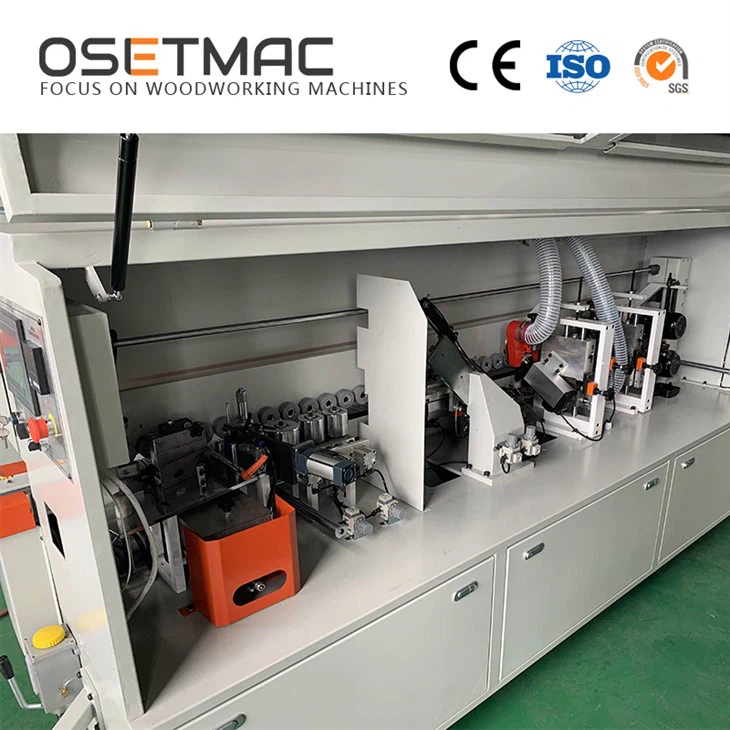

- Dual-motor trimming device: Simultaneously trims both ends of the panel, improving cutting accuracy and production efficiency.
- Fine-adjustment device: Precisely adjusts to panel thickness, ensuring smooth and even edge banding.
- Scraping device: Effectively removes fine burrs after planing, enhancing the panel's surface finish.
- Polishing device: This mini automatic edge banding machine is equipped with dual motors and dual polishing wheels, resulting in a smooth, glossy edge.
- Rugged and durable construction: Constructed of 14mm high-strength steel, it ensures long-term, high-performance operation and stability.

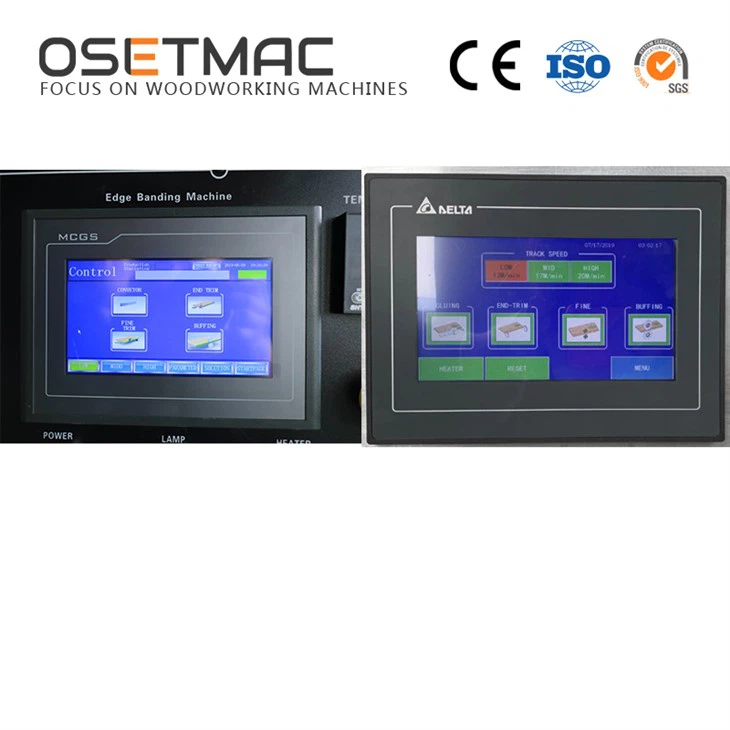

- PLC touchscreen and automation: Enables fully automatic control.
- Assistive features: Equipped with an automatic oiler, built-in lighting, and a customizable exterior.
our service
Pre-sale: Recommend the most suitable products based on customer needs and provide a complete set of solutions.
Sale: Confirm order details with the factory and monitor production progress, addressing any changes in customer requirements promptly.
After-sales: Collect customer feedback and promptly resolve any issues encountered during product use.
certification
Our manufacturing facility is ISO9001 certified, and some of our key products are CE certified.
