Product Introduction
Woodworking edgebanders are woodworking edgebanding machines suitable for gluing, trimming, and polishing the edges of furniture, cabinets, and panels.
Specification
|
Model |
SYS-368 |
|
Panel Thickness |
10-60mm |
|
Edge Band Thickness |
0.4-3mm |
|
Panel Width |
≥60mm |
|
Panel Length |
≥150mm |
|
Feeding Speed |
15-23m/min |
|
Working Pressure |
0.6Mpa |
|
Voltage |
380V/50HZ/3PH |
|
Gluing Motor |
0.75KW 50HZ 1400RPM |
|
End Cutting Motor |
0.37KW * 2 200HZ 12000RPM |
|
Fine Trimming Motor |
0.75KW * 4 300HZ 18000RPM |
|
Buffing Motor |
0.37KW * 2 50HZ 1400RPM |
|
Conveyor Motor |
2.2KW |
|
Glue Pot Heating Power |
2.4KW |
|
Assistant Heating Power |
0.3KW |
|
Lighting Power |
0.05KW |
|
Lifting Motor |
0.25KW |
|
Total Power |
12.20KW |
|
Dimension |
4800x850x1600mm |
|
Wooden Crate Package |
4700×900×1700mm |
Product Features
Durability
The machine body and cutting tools are made of high-strength alloy steel and super-hard alloy, ensuring a continuous working life of 5–8 years.
Precision Machining
The machine body and transmission components are CNC-machined to a tolerance of ±0.2mm, ensuring smooth, even edge banding and consistent edge radius.
Uniform Gluing
The gluing process utilizes a six-wheel press design, ensuring full contact between the board and the glue, ensuring a secure bond.
Stable Control
The woodworking edgebanders are equipped with a PLC touchscreen control system and optional DELTA or MCGS inverters for precise speed and pressure adjustment.
Versatility

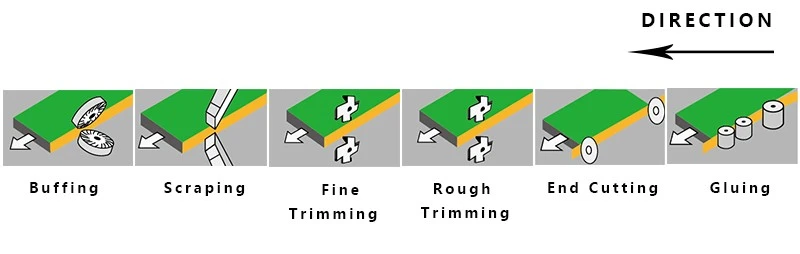

One machine can perform end cutting, rough trimming, fine trimming, scraping, and polishing.
Company Advantages
Rich Experience and Expertise: With over eight years of expertise in woodworking machinery, we have accumulated extensive industry experience and technical expertise.
Independent Manufacturing and R&D Capabilities: We own a wholly-owned manufacturing facility (Qingdao Sanysan Machinery Co., Ltd.), enabling independent R&D and on-time production delivery.
Extensive International Market Reach: Our products are exported to over 30 countries and regions, including the Middle East, Southeast Asia, Europe, and South America, demonstrating strong international competitiveness.
Strict Quality and High-Quality Service: Our factory is ISO9001 certified, and some products are CE certified. We also provide responsive customer service and complete solutions.
Frequently Asked Questions
Q: How do woodworking edgebanders work?
A: A woodworking edgebander applies adhesive to the edge banding, aligns it with the edge of the workpiece, presses it together, and finally trims any excess to complete the edge.
Q: What materials can edgebanders process?
A: Edgebanders can process materials such as PVC, ABS, veneer, melamine, and solid wood edgebanding for various furniture components.
Q: What types of woodworking projects use edgebanders?
A: Cabinetry, wardrobe production, office desk construction, and panel furniture projects typically use edgebanders to achieve clean edges.
Q: How often should edgebanders be cleaned?
A: Users should clean edgebanders daily, focusing on removing adhesive residue, dust from the rollers, and debris from the trimming area to maintain performance.
Q: Which parts of an edgebander require regular lubrication?
A: Moving parts such as the conveyor chain, trimming blade hinges, and pressure roller bearings require regular lubrication to reduce wear.
