Solid Wood Moulder

Spindle Moulders can be used to cut much larger profiles than routers and custom made cutters can be readily ordered or fabricated. Spindle Moulders can be modified to perform specialised cuts through the use of a wide variety of accessories such as a sliding table.

Send Inquiry

Description

*The spindle assembly adopts imported bearings and high-end German lubricating grease to ensure the service life of the spindle.

*After the spindle assembly is rebalanced, the machine becomes more stable at high speeds.

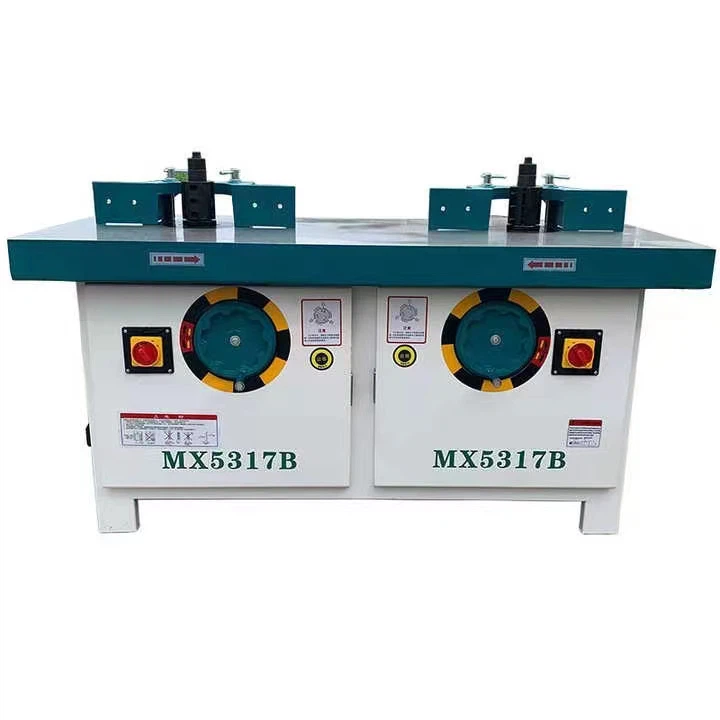

Single Spindle Solid Wood Moulder Spindle molds can be used to cut contours much larger than routers, and customized cutting tools can be easily ordered or manufactured. The spindle mold can be modified for specialized cutting by using various accessories such as sliding tables.

‌

Solid wood molding machine plays an important role in wood processing,Single Spindle Solid Wood Moulder mainly used in the production process of solid wood flooring, furniture and other products to ensure that the size and shape of the products meet the requirements.

1. Single Spindle Solid Wood MoulderLarge workbench size: 1130x680mm

2. Two speeds: 5000/10000 r/min

3.5.5kw motor optional

Specification

Model	MX5117B
Max Working Thickness	120mm
Spindle Diameter	φ35mm
Height of Main Spindle Lift	100mm
Spindle Speed	10000r/min
Total Install Power	5.5kw
Working Table Size	1130*700mm
Machine Weight	365kg
Voltage	380V, 50Hz, 3 Phase
Dimension	11307001000mm
