The Straight Curve Edgebander is a machine designed for edge banding straight and curved panels using hot melt glue, suitable for furniture, cabinets, and decorative panel production.
feature

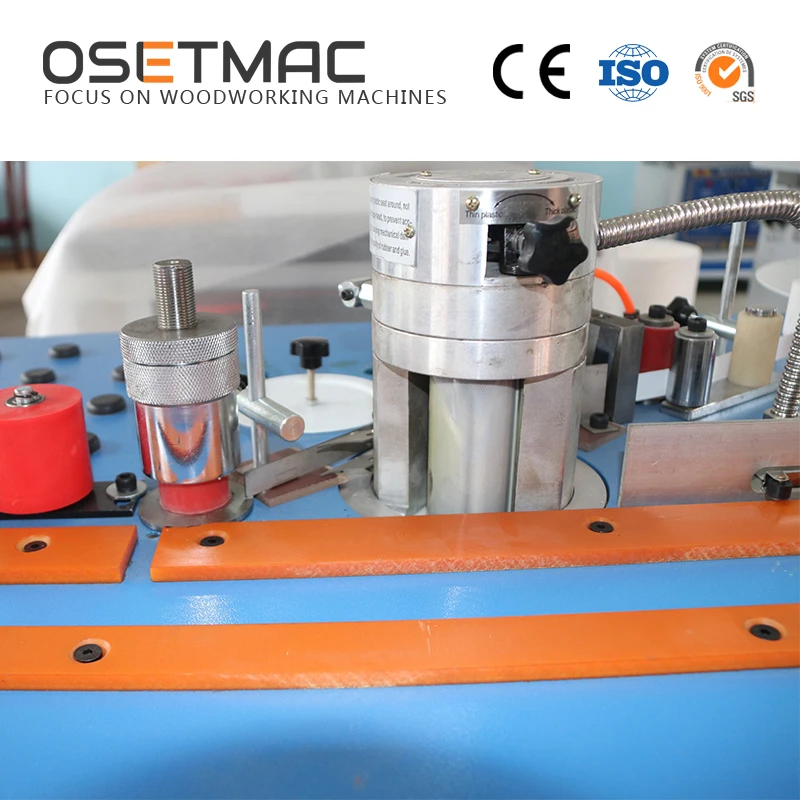

Double-Sided Gluing System
Hot melt glue is evenly applied to both sides, ensuring a secure bond between the panel and the edgebanding strip.

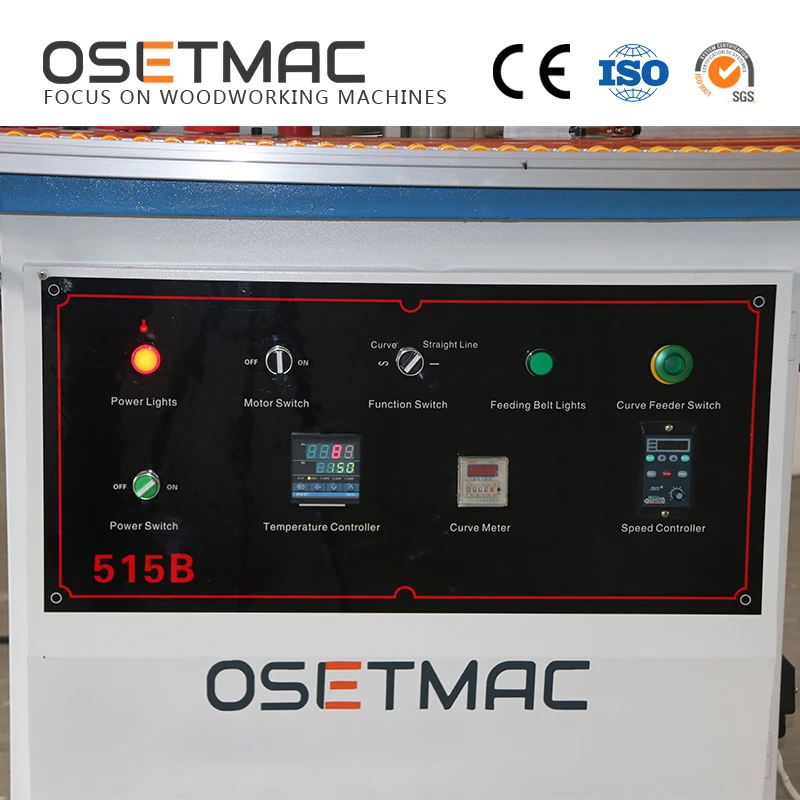

Frequency Control System
Infinitely adjusts the feed and glue shaft speeds to achieve the optimal edgebanding speed for different materials.
Scratch-Resistant Laminated Worktop
The scratch-resistant phenolic multi-layer worktop features modular perforations and panel supports for easy panel processing.
Straight and Curved Compatible
The edgebander can handle curved and straight panels with a minimum diameter of 20 mm.
Specification
|
Voltage |
220V /50HZ/ single PH 380V/50HZ/ 3PH |
|
Total Power |
2.0KW |
|
Edge Band Thickness |
0.4-2.0mm |
|
Edge Band Width |
12-45mm |
|
Panel Thickness |
10-40mm |
|
Heating Power |
1.8KW |
|
Glue Motor |
0.2KW |
|
Total Power |
2.0KW |
|
Panel Length |
≥150mm |
|
Feeding Speed |
1-18m/min |
|
Working Pressure |
0.4-0.5Mpa |
|
Workpiece Shape |
Straight and Curved |
|
Minimum Dia. for Curved Shape |
20mm |
|
Net Weight |
168KG |
|
Gross Weight |
200KG |
|
Machine Dimension |
950*750*1000mm |
|
Wooden Case Dimension |
1050*830*1110mm |
our service
Pre-sale: Recommend the most suitable products based on customer needs and provide a complete set of solutions.
Sale: Confirm order details with the factory and monitor production progress, addressing any changes in customer requirements promptly.
After-sales: Collect customer feedback and promptly resolve any issues encountered during product use.
certification
Our manufacturing facility is ISO9001 certified, and some of our key products are CE certified.
The Advantage of Choosing Us
Extensive Experience
OSETMAC has specialized in the research, development, and production of woodworking machinery for over eight years, accumulating extensive industry experience and providing customers with professional and reliable solutions.
Independent R&D Capabilities
Our in-house R&D team is capable of designing products tailored to customer needs, ensuring timely production completion and providing prompt customer service.
International Market Coverage
Our products are sold in over 30 countries and regions, including the Middle East, Southeast Asia, Europe, and South America. With extensive overseas market experience, we are well-suited for bulk export.
Quality Assurance
Our factory is ISO9001 certified, and our main products are CE certified, ensuring reliable performance and compliance with international standards.
